Embedded Data Visualization: Examples, Patterns, and How It Works (2026 Guide)

Embedded data visualization is the practice of placing interactive charts, dashboards, or reports directly inside a host application — typically a SaaS product — so end users access insights without leaving that product. It's a sub-pattern of embedded analytics, focused on the visualization layer specifically (the charts and dashboards) rather than the full BI stack (querying, caching, scheduling, alerting).

This guide is for product and engineering teams who are deciding whether — and how — to embed data visualization inside a customer-facing SaaS product. If you're picking a tool for your own analyst team, the embedded analytics tools comparison and the embedded BI explainer cover that path.

We'll walk through what embedded data visualization actually is, ten concrete patterns of how it shows up inside real SaaS products (Stripe, Shopify, Linear, Vercel, Notion, and friends), how it differs from sibling concepts in the cluster (embedded analytics, embedded BI, embedded reporting, embedded dashboards), the three architectural patterns engineering teams use to ship it in a production codebase, and the honest version of the build-vs-buy call.

What is embedded data visualization?

Embedded data visualization is the practice of rendering interactive charts, dashboards, or visual analytics inside another application — almost always a SaaS product — so the people who already use that product can see insights without switching context. It's the difference between "log into our BI tool to see your usage" and "your usage chart is right here on the page you're already on."

A few things it is not:

• Not a CSV export. Letting users download data isn't the same as visualizing it in-product.
• Not a static screenshot pasted into a marketing page. Embedded data viz is interactive — users hover for tooltips, change date ranges, drill into segments, swap filters.
• Not a separate analytics product living on a different domain or behind an SSO bounce. The whole point is that the chart lives inside the host app's navigation, theme, and user session.

The host-app-versus-standalone-app distinction is the cleanest way to recognize embedded data viz when you see it. If the chart is rendered alongside features that have nothing to do with analytics — a CRM contact page, a project board, a billing portal — and inherits the surrounding product's UI, that's embedded data visualization. If the chart lives in a dedicated analytics destination the user navigates to as a separate experience, that's a standalone analytics product.

Why this matters in 2026: SaaS users now treat in-product analytics as table stakes, and the AI-overview era has raised the bar — users increasingly expect the chart and a sentence of explanation in the same view, served wherever the question naturally arises in their workflow.

10 patterns of embedded data visualization in SaaS products

Below are the patterns we see most often in real customer-facing SaaS products. Each is a concrete UI surface, not a vague category — read them as a menu of options when you're sketching where analytics belongs inside the product your customers use. Every example is a SaaS or large-tech product team shipping data viz to their own end customers, not a BI vendor selling to internal analyst teams.

1. In-row metric cells

A column inside a list or table that's actually a tiny chart — a sparkline of revenue per customer row, a 7-day usage bar in a project list, a health-score arrow per integration. Teams reach for this when the user is scanning a list and the per-row trend is more useful than a single number. Examples: Linear's issue list shows velocity context per project; Vercel's deployments table renders a build-time sparkline per row; GitHub shows a contribution sparkline next to each contributor on a repo's insights pane.

2. KPI tiles in product header or sidebar

Three to six small metric tiles pinned to the top of a page or sidebar — one number per tile, a delta, often a small trend graphic. It's the "at-a-glance" pattern and usually the first surface where analytics arrives in a SaaS product. Examples: Stripe Dashboard's revenue / new-customer / MRR tiles on the home view; Shopify admin's orders / sessions / conversion tiles on the merchant home; Cloudflare's requests / bandwidth / errors tiles on the per-zone home.

3. Native dashboard tab

A full Analytics or Insights tab inside the host product navigation, white-labeled to look like part of the product. Same nav, same theme, same auth — the end customer doesn't perceive it as a separate tool. This is what most product teams mean when they say "we want to add analytics," and it's where embedded data viz shades into embedded dashboards. Examples: Vercel Analytics as a tab inside the Vercel dashboard; Linear Insights; HubSpot Reporting; the Datadog product itself, where dashboards-as-product is the surface.

4. Embedded modal drill-downs

Clicking a number anywhere in the product opens a modal with a richer chart and filters. The pattern lets you surface a metric in many places without cluttering the page — the depth lives behind the click. Works well when the same metric appears in multiple contexts. Examples: clicking an MRR figure in Stripe opens a revenue-trend modal scoped to that account; clicking an error rate in Sentry opens a breakdown by release and environment; clicking a usage number in a billing portal opens the usage breakdown by metered API.

5. Inline charts on record pages

A chart embedded directly on a record page — an account page in a CRM, a customer detail page in a billing tool, a deployment page in a developer platform. The chart shows the time series for that one record, alongside the metadata and activity feed. Useful because the viz is rendered right where the question arises, instead of forcing the user to bounce to a separate analytics route. Examples: HubSpot's contact / deal pages embed activity-and-engagement charts; Stripe's customer detail page embeds revenue and subscription history; Vercel's deployment detail page embeds Web Vitals and bandwidth charts.

6. Customer portal dashboards

A B2B portal where end customers log in to see their own data — usage, billing, performance, ROI. This is the multi-tenant version of embedded data viz, and the surface where row-level security at query time stops being optional. Each tenant must see only their own rows; the visual primitives mirror pattern #3, but the auth model and isolation requirements are categorically different. Examples: Twilio Console's per-account usage portal; AWS Cost Explorer as a tenant-scoped portal inside the AWS console; agency-style platforms shipping a white-label client dashboard for each of their customers' customers.

7. Public / shareable embeds

An embed code your customers can paste into their site — a public chart on a marketing page, a shareable read-only dashboard link, an embed that drops into a Notion page or a Confluence wiki. The audience may not even be authenticated. Examples: Hex's public-app embed lets data teams ship a Hex notebook into a customer's website; Observable notebooks embed into product docs and marketing pages; Statuspage embeds for transparency-oriented SaaS surfaces.

8. Real-time streaming visualizations

Charts that update continuously as data arrives — observability, on-call monitoring, live ops, trading and risk views. The visual primitive is usually a canvas-rendered line or area chart with a sliding time window; the architectural concern is that the chart needs a streaming data path (WebSocket, SSE, polling) instead of a normal request-response cycle. Examples: Datadog and Grafana Cloud as customer-facing observability products; Cloudflare's live request graph; Coinbase's real-time order-book visualizations.

9. Scheduled report exports

A customer configures a chart or dashboard to be emailed (or dropped into Slack / a webhook) on a schedule — Monday-morning summaries, end-of-month rollups, daily ops digests. The viz lives in-product but the delivery is external; the chart renders to a PDF or PNG and gets pushed. Examples: Stripe's scheduled financial reports; Mixpanel scheduled cohort reports; HubSpot's scheduled email digests. This is the boundary where embedded data viz shades into embedded reporting.

10. AI-narrated insight surfacing

The 2026 evolution: a chart paired with a one-to-three-sentence auto-generated commentary explaining what changed week over week and what to look at next. The chart hasn't changed; what's added is a small LLM-generated narrative anchored to the same data, plus the data lineage that makes the narrative auditable. Examples: Notion's AI summarization over its database calculations and rollups; Linear's release-note-style insight summaries; Mixpanel's AI-generated commentary on top of cohort analyses. Done well, it shortens the path from "chart visible" to "decision made"; done poorly, it generates plausible-sounding nonsense — so the engineering effort lives in the lineage, not the prose.

Embedded data visualization vs embedded BI vs embedded reporting vs embedded dashboards vs embedded analytics

These five terms are used almost interchangeably in marketing copy. They aren't interchangeable, and untangling them is the most common reason this page exists. The framing below assumes you're a SaaS product team shipping each of these to your end customers (not buying any of them for your own analyst team).

A few clarifying notes:

• Embedded data viz is the visualization layer, not the data layer. It describes the chart on the screen and the surfaces it appears on. Whether the data behind it comes from your own SQL, a semantic layer, a cached pre-aggregation, or a vendor's API is a separate question.
• Embedded analytics is the umbrella. It includes the viz, but also the query engine, the auth model, the caching layer, the scheduling system, and the export pipeline. If embedded data viz is the chart on the screen, embedded analytics is everything required to put it there reliably across thousands of tenants.
• Embedded BI and embedded analytics are the same product in different framing. "BI" is the business-user framing (self-service exploration, ad-hoc questions). "Analytics" is the developer / data-team framing (instrumentation, queries, models). Same product, different audience. We cover both under embedded BI for data-driven decisions.
• Embedded reporting is the static cousin. When the artifact is a PDF, an email digest, or a CSV pushed on a schedule, you're in embedded reporting territory. Overlaps with pattern #9 above; the mental model is: viz is interactive in-product, reporting is generated and pushed.
• Embedded dashboards is a subset of embedded data viz. Patterns #3 and #6 are embedded dashboards specifically. Patterns #1 and #2 are embedded data viz but wouldn't usually be called dashboards — they're chart primitives, not full dashboard surfaces.

For the broader concept-level comparison of analytics versus BI as terms (independent of the "embedded" prefix), see embedded analytics vs business intelligence.

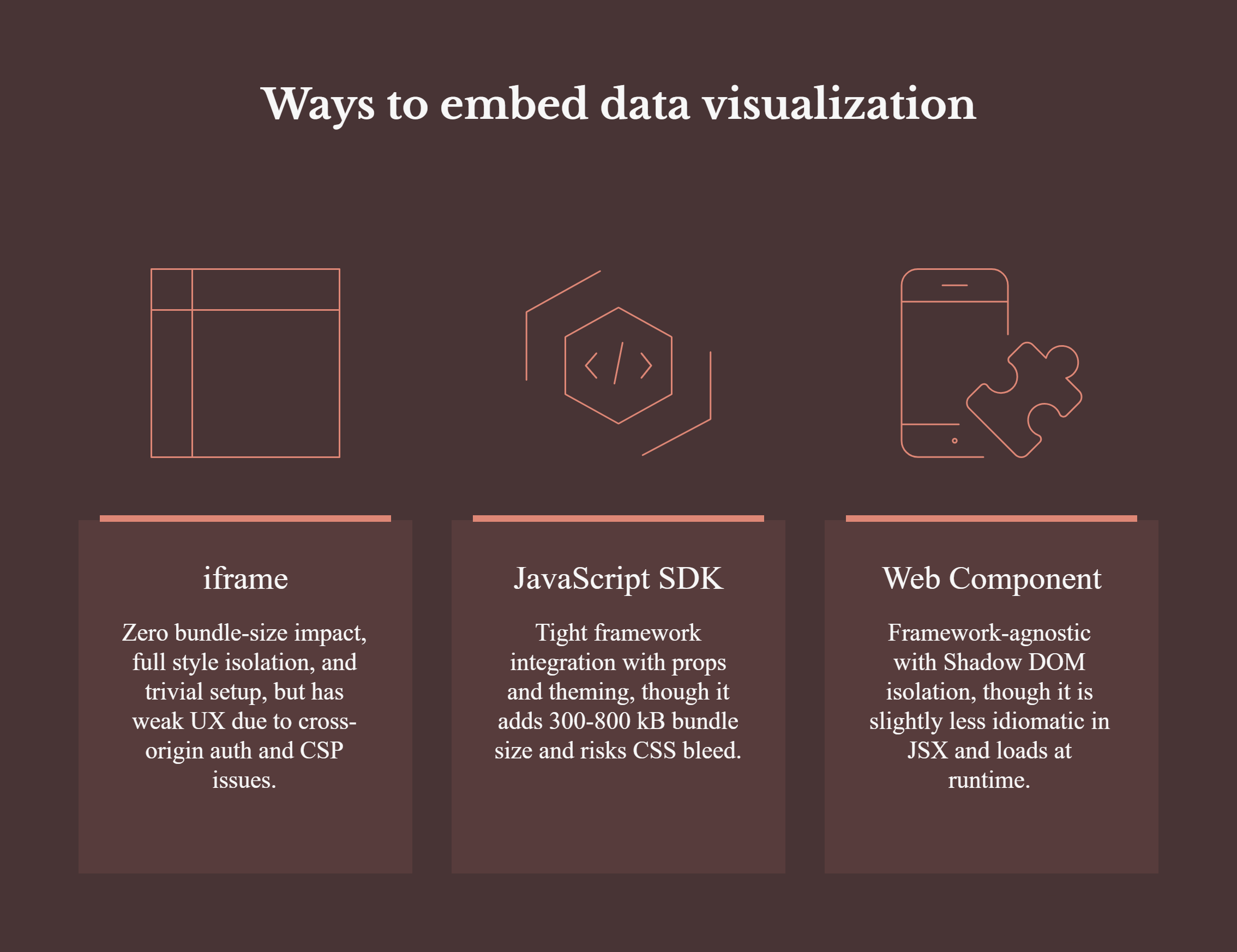

How embedded data visualization actually works (3 architectural patterns)

There are three ways embedded data viz gets shipped into a host app. Each makes a different trade-off between integration depth, bundle size, and styling control.

1. iframe

The chart or dashboard is hosted on a different origin and rendered via <iframe src="...">. Zero bundle-size impact on the host app, full style isolation, trivial to wire up. The cost is a worse UX: cross-origin auth gets awkward (third-party cookies, SameSite headaches), CSP frame-src and the iframe sandbox attribute need explicit configuration per environment, interactivity with the surrounding page is limited, and resizing is fiddly. Fine for internal tools and proofs-of-concept; rarely the right answer for a customer-facing SaaS surface.

2. JavaScript SDK

The vendor ships an npm package with framework-native components — <Dashboard>, <Chart>, <KpiTile> — that you drop into your component tree. Tight integration: props, callbacks, theming via design system tokens, callbacks the host app can subscribe to. The cost is bundle size (full SDKs commonly weigh 300–800 kB before code-splitting, which makes a perf budget on the analytics route mandatory) and the risk of CSS bleed between the SDK's internal styles and the host app. The most common pattern for customer-facing embeds in 2026.

3. Web component

The vendor ships HTML custom elements — <my-dashboard token="..." dashboard-id="..."> — that work in any framework and render their internals inside Shadow DOM. Shadow DOM isolation means the host app's CSS can't leak into the embed and the embed's CSS can't leak out, which is the cleanest answer to theme bleed in a multi-tenant white-label deployment. One integration code path covers React, Vue, Angular, Svelte, and plain HTML, with a smaller surface area than a full SDK. Trade-offs: slightly less idiomatic JSX (you may need to declare the element type for TypeScript), and the runtime still loads when the element first mounts. The cleanest option when style isolation matters or the app may live in more than one frontend framework over time.

For the full implementation playbook in your stack, see our guides on embedded analytics in React, Python, or Angular.

Build vs buy: when does embedded data visualization warrant a platform?

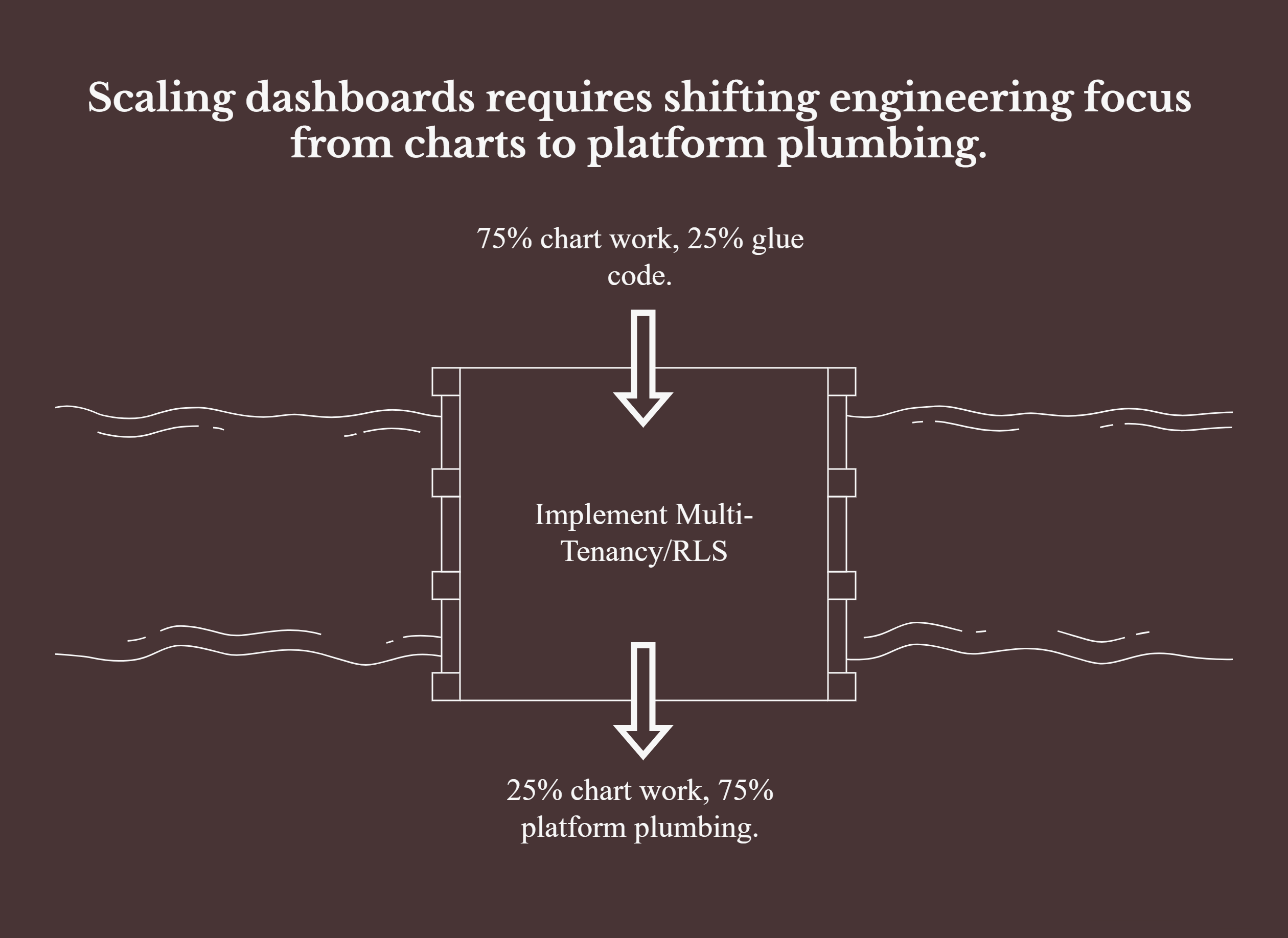

For a SaaS product team shipping in production, the decision rests on where engineering effort actually goes. At a typical single-tenant or small-scale dashboard, the split is roughly 75% chart-library work + 25% glue code — picking the right chart, theming it, plumbing data in. Once you cross 50+ tenants, or need row-level security at query time, that ratio inverts to roughly 25% charts + 75% platform plumbing — and that's where a chart library alone stops being viable.

The chart library still draws the chart. But you're now also building the things a chart library doesn't do:

• Multi-tenant query isolation and row-level security at query time
• Per-tenant white-labeling that respects each customer's design system tokens
• Caching and pre-aggregations safely keyed per tenant
• A no-code dashboard authoring UI so non-engineers (your customers' admins, your own CSMs) can build dashboards without filing tickets
• Embed authentication — short-lived guest tokens, tenant-scoped JWT claims, refresh logic, error states
• Scheduled exports (PDF, CSV, email) and webhook delivery
• AI-narrated insight surfacing with auditable data lineage
• Per-tenant rate limiting and quota accounting

None of that is what a chart library is supposed to do, and none of it gets cheaper by stacking more chart libraries.

The shorthand: if your dashboard is internal, keep stacking chart libraries — the glue-code cost is amortized over a small audience. If it's customer-facing in a multi-tenant SaaS product, the math flips and a platform earns its keep within the first year. The chart-library question is one of the easier ones; the harder ones are multi-tenant query routing, RLS, and white-labeling.

If you do go down the platform path, evaluate candidates the way you'd evaluate any production library: GitHub stars and release cadence (active maintenance vs. a stale repo), npm audit cleanliness, named production users you recognize, SDK DX (TypeScript ergonomics, error messages, 'use client' / RSC compatibility), bundle-size impact on your perf budget, and whether you can theme it through your design system tokens without forking. For the full decision frame, see embedded analytics build vs buy; for a side-by-side of the platforms themselves, see embedded analytics tools.

Common pitfalls developers hit when embedding data visualization

The production-scale gotchas that bite real customer-facing implementations:

• Tenant data leak via misconfigured RLS. The most expensive class of bug. If a metric definition or a guest-token claim forgets to scope on tenant_id, that metric leaks across every tenant who renders it. Treat metric reviews with the same rigor as code review for SQL injection, and add an integration test per metric that asserts the WHERE clause carries the tenant scope.
• CSP / iframe sandbox conflicts. Production CSPs commonly disallow frame-src from origins that haven't been explicitly added. Iframe embeds break silently the first time a tenant lands on the analytics route in prod; SDK embeds break when the analytics origin's connect-src is missing. Audit CSP, frame-src, connect-src, and the iframe sandbox attribute together.
• Theme bleed across 'use client' boundaries. Next.js App Router apps that wrap the embed in 'use client' still inherit the parent app's design system tokens, and when those tokens change between prod and a tenant's white-label theme override, the chart can render with the wrong palette mid-route-transition. Pin the theme tokens at the embed boundary or push them through a Shadow DOM isolation layer.
• Cache-key collisions when tenants share an upstream warehouse. Multi-tenant deployments that point at one Snowflake / BigQuery / Postgres instance often share a query cache too. If the cache key includes the metric ID and the parameter set but not the tenant, you'll serve tenant A's pre-aggregated numbers to tenant B on a cache hit. Always include the tenant scope in the cache key, even when the underlying SQL already filters on it.
• SDK bundle blowing the perf budget. Dropping a 600 kB SDK into a customer-facing route regresses LCP and INP on the routes your sales team demos. Lazy-load the analytics route, code-split the SDK, and measure before-and-after with a real Lighthouse run on the slowest tenant.
• Guest-token rotation gaps in long-lived sessions. Guest tokens typically expire in an hour. If your embed component doesn't refresh before expiry, customers get a silent failure 60 minutes into a session. Refresh on a setInterval set comfortably below the expiry window, and surface an explicit error state if the refresh call fails.

Conclusion

Embedded data visualization is the practice of rendering interactive charts and dashboards inside a host application — almost always a SaaS product — so the customers already using that product can see insights in the same place they work. It's a sibling of embedded analytics (which includes the query and auth stack underneath), embedded BI (the business-user framing of the same thing), embedded reporting (the static, scheduled cousin), and embedded dashboards (a dashboard-shaped subset).

If your roadmap involves customer-facing analytics in a SaaS product, the next two decisions for the product and engineering team are usually which framework you're embedding in — see our implementation guides for React, Python, and Angular — and whether to build the platform underneath or buy one, the build vs buy call. Pick the pattern from the ten above that matches the surface your customers live on, then take those two decisions in that order.
